| Place of Origin: | China |
|---|---|
| Brand Name: | sinolift |
| Certification: | CE |
| Model Number: | AF BF |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

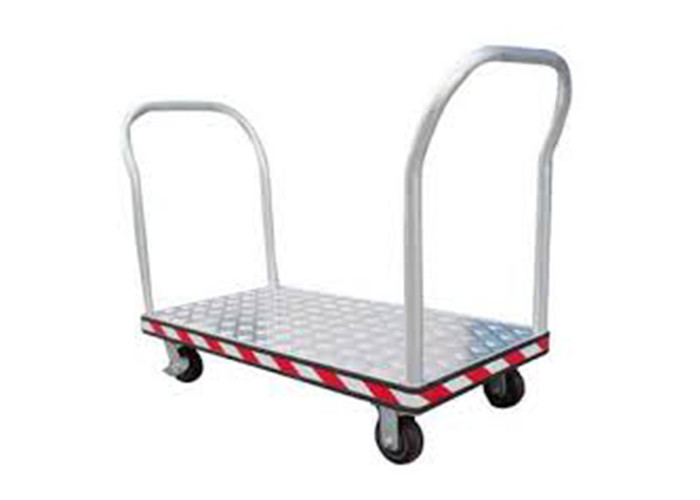

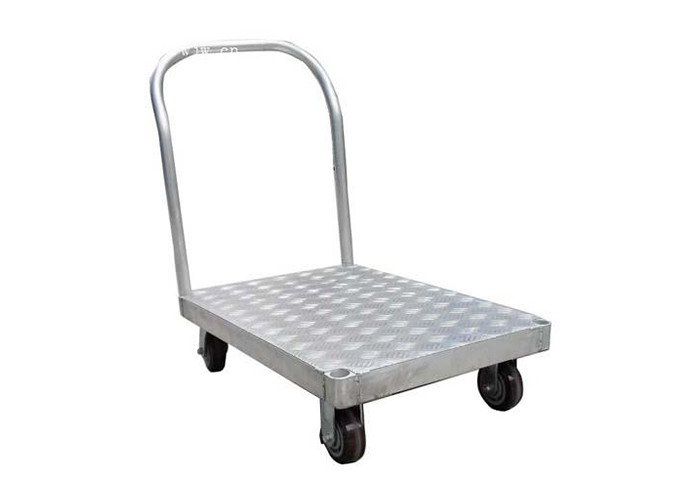

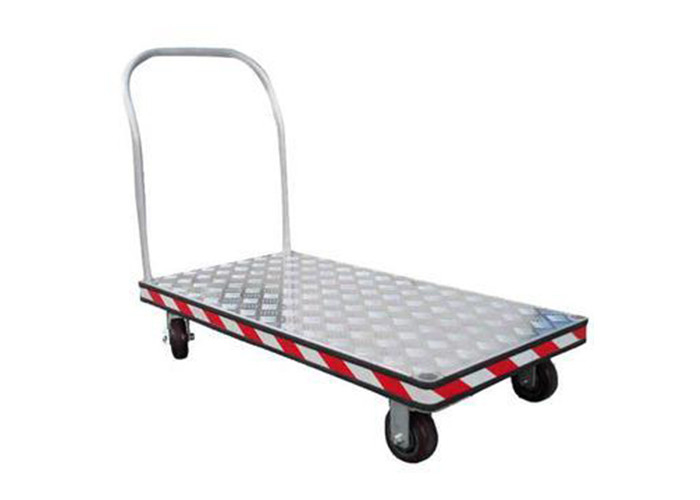

| Product Name: | Aluminum Hand Trolley | Capacity: | 550-1350KG |
|---|---|---|---|
| Platform Height: | 236-300mm | Handle Height（mm）: | 910-980mm |
| Material: | Steel | Wheel (PU Or Rubber)(mm): | 125X50mm |
| Net Weight: | 20-42.5kg | Certification: | CE,ISO9001 |
| Model: | AF Series | Warranty: | 1 Year |
| After Service: | On-line Service,Spare Parts | ||
| Highlight: | Aluminum Hand Platform Trolley,Corrosion Resistant Hand Platform Trolley,1100kg Platform Hand Trolley |
||
Feature:
Patterned aluminum platform.
Frame made of aluminum alloy.
Four edges to be Anti-collision design.
Handle tube bases are installed on both sides, handle can be installed any side or both sides.
Two universal steering wheels and two fixed wheels are equipped to ensure smooth moving.
Widely applied in supermarket, meat industry and other food industry.
Specification:
| Model | Load capacity(kg) | Platform size(mm) | Platform height(mm) | Handle height(mm) | Wheel (PU or Rubber)(mm) | Net weight(kg) |
| AF2436 | 900 | 610*915 | 236 | 910 | 125*50 | 20 |
| AF2448 | 900 | 610*1220 | 236 | 910 | 125*50 | 25.5 |
| AF3048 | 900 | 760*1220 | 236 | 910 | 125*50 | 28 |
| AF3060 | 900 | 760*1525 | 236 | 910 | 125*50 | 33 |
| AF3672 | 900 | 915*1830 | 236 | 910 | 125*50 | 38.5 |
| BF2436 | 1350 | 610*915 | 260 | 940 | 150*50 | 21 |
| BF2448 | 1350 | 610*1220 | 260 | 940 | 150*50 | 26.5 |
| BF3048 | 1350 | 760*1220 | 260 | 940 | 150*50 | 29 |
| BF3060 | 1100 | 760*1525 | 260 | 940 | 150*50 | 34 |
| BF3672 | 1100 | 915*1830 | 260 | 940 | 150*50 | 39.5 |
| CF2436 | 550 | 610*915 | 300 | 980 | 200*50 | 24 |
| CF2448 | 550 | 610*1220 | 300 | 980 | 200*50 | 29.5 |
| CF3048 | 550 | 760*1220 | 300 | 980 | 200*50 | 32 |
| CF3060 | 550 | 760*1525 | 300 | 980 | 200*50 | 37 |
| CF3672 | 550 | 915*1830 | 300 | 980 | 200*50 | 42.5 |
