Product Name: | Manual Winch Stacker | Capacity: | 80/150kg |
---|---|---|---|
Load Centre: | 230mm | Net Weight: | 48-64kg |
Max. Platform Height: | 1500mm | Min. Platform Height: | 130 (PE) / 85 Steel Mm |
Support Leg Inner Width: | 370mm | Platform Size: | 470×600 Mm |
Overall Dimensions: | 840X600X1830mm | Load Wheel: | ø75 Mm |
Steeing Wheel: | ø125 Mm | Net Weight: | 48Kg |
Highlight: | Maneuverable Work Positioner Lift,manual hand winch operated work positioner,1500mm manual winch stacker |
Feature:

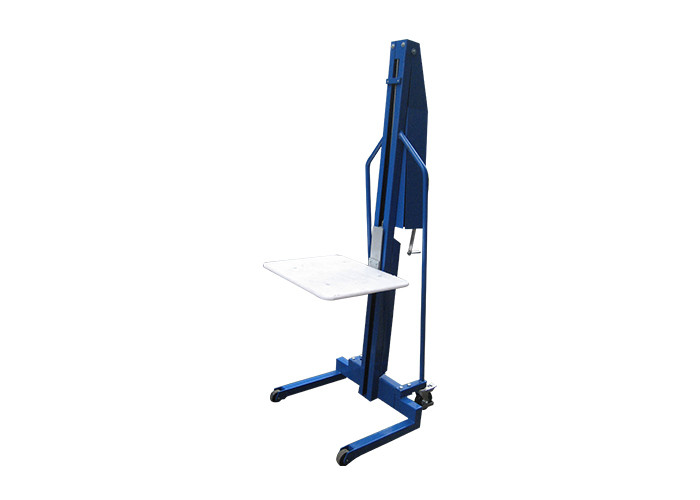

Winch Work Positioner M100(L) /M200(L) series
A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc...
▲ Manual models: Operated via a manual hand winch.
Auto brake system prevents uncontrolled lowering.
▲ Quick change attachment options available.
▲ Conforms to EN1757, CE marked.
Specification:
Model | M100 | M100L | M200 | M200L | |
Capacity | (kg) | 100 | 100 | 200 | 200 |
Load Center | (mm) | 230 | 230 | 230 | 230 |
Max. Platform Height | (mm) | 1500 | 1500 | 1500 | 1500 |
Min. Platform Height | (mm) | 130 (PE) / 85 Steel | 130 (PE) / 85 Steel | ||
Min. Fork Height | (mm) | 30~80 | 30~80 | 30~80 | 30~80 |
Support Leg Height | (mm) | 110 | 80 | 110 | 80 |
Support Leg Inner Width | 370(370~600) | ||||
Platform Size | (mm) | 470×600 (PE or Steel) | 470×600 (PE or Steel) | ||
Overall Dimensions | (mm) | 840×600×1830 | 840×600×1830 | 870×600×1920 | 870×600×1920 |
Load Wheel | (mm) | ø75 Universal | ø75 Fixed | ø75 Universal | ø75 Fixed |
Steeing Wheel | (mm) | ø125 (PU) | ø125 (PU) | ø125 (PU) | ø125 (PU) |
Net Weight | (kg) | 48 | 50 | 62 | 64 |
