| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CBH16&CBD16 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

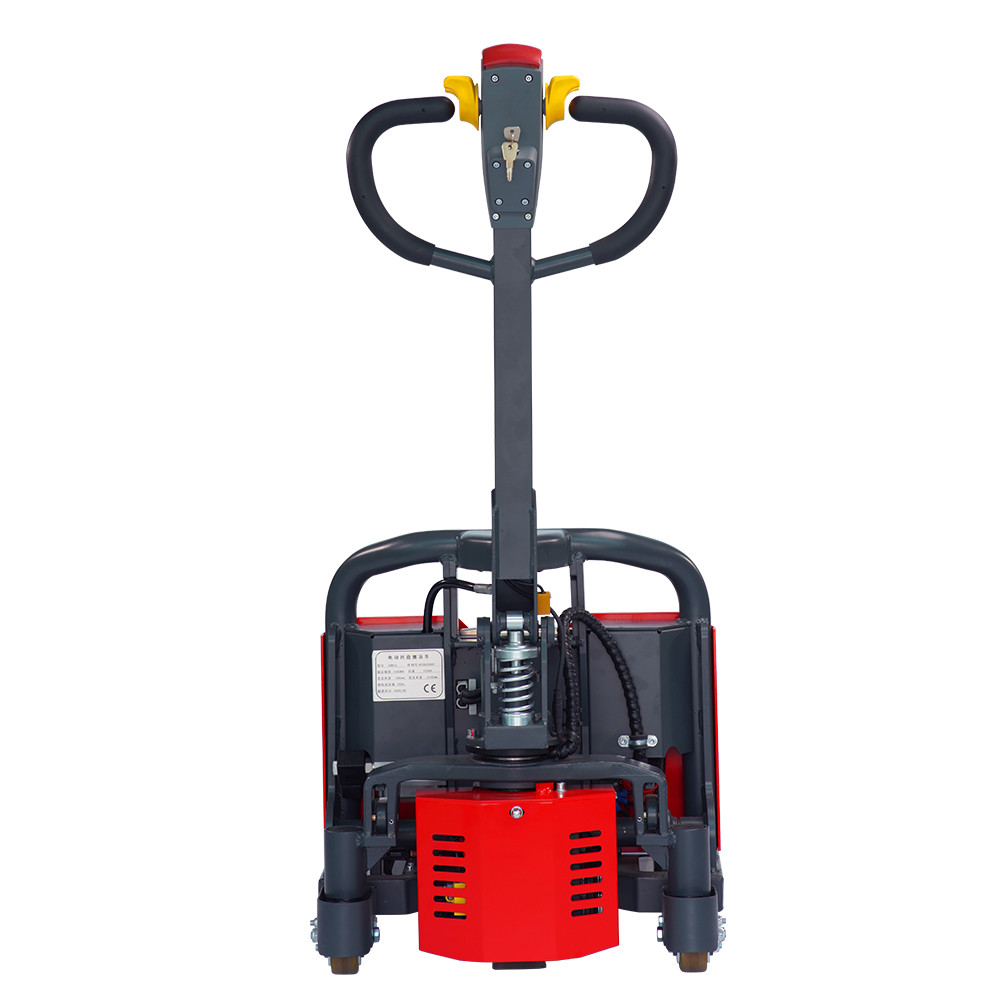

| Product Name: | CBH16 CBD16 Lithium Battery Operated Pallet Truck Loading Capacity 1600kg | Load Capacity: | 1600kg |
|---|---|---|---|
| Driving Type: | Electric | Load Center: | 600mm |
| Turning Radius: | 1350mm | Single Fork Width: | 160mm |
| Max. Fork Height: | 190mm | Min. Fork Height: | 85mm |
| Wheel Base: | 1220mm | Battery: | 24V/20Ah |
| Driving Motor: | 0.75kw | Net Weight: | 145Kg |
| High Light: | Lithium Battery Operated Pallet Truck,1600kg Battery Operated Pallet Truck,Walkie type battery powered pallet truck |
||
Feature:
SINOLIFT is setting new benchmarks in pallet truck productivity and efficiency with the CBD16: No need for a hand
pallet truck anymore – with a lifting capacity of up to 1,600 kg, heavy loads can be transported fatigue-free with the
CBD16. Electric lifting and driving noticeably relieves stress on the operator, just as the ergonomic design of the tiller
head enables a natural hand position during operation. The compact low lift pallet truck is powered by innovative

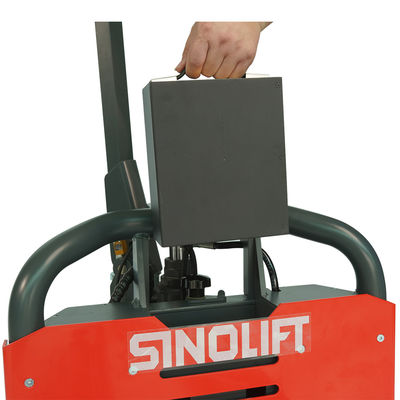

Li-Ion technology, which is particularly maintenance free and reliable. The Li-Ion battery is very easy to change and
can be easily inserted into the forklift truck for ultimate availability.
Specification:
| MODEL | CBH16 | CBD16 | ||
| Driving Type | Electric | Electric | ||
| Operation Type | Walkie | Walkie | ||
| Load Capacity | Q | kg | 1600 | 1600 |
| Load Center | C | mm | 600 | 600 |
| Max. Fork Height | H1 | mm | 190 | 190 |
| Min. Fork Height | H | mm | 85 | 85 |
| Fork Length | L | mm | 1150 | 1150 |
| Frame Height | H4 | mm | 560 | 560 |
| Drive Wheel Size | mm | Φ210*70 | Φ210*70 | |
| Front Wheel Size | mm | Φ80*70 | Φ80*70 | |
| Wheel Material | PU | PU | ||
| Single Fork Width | B1 | mm | 160 | 160 |
| Turning Radius | R | mm | 1350 | 1350 |
| Wheel Base | L1 | mm | 1220 | 1220 |
| Driving Motor | kw | 0.75 | 0.75 | |
| Lifting Motor | kw | / | 0.5 | |
| Battery | v / Ah | 24/20 (25) (30) | 24/20 (25) (30) | |
| Travel Speed, laden/unladen | km/h | 4/5 | 4/5 | |
| Gradeability,laden/unladen | % | 3/5 | 3/5 | |
| Overall Length | L2 | mm | 1540 | 1540 |
| Overall Width | B | mm | 560/680 | 560/680 |
| Overall Height | H3 | mm | 1220 | 1220 |
| Net Weight(including battery) | kg | 145/150 | 155/160 | |
