| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | PS |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

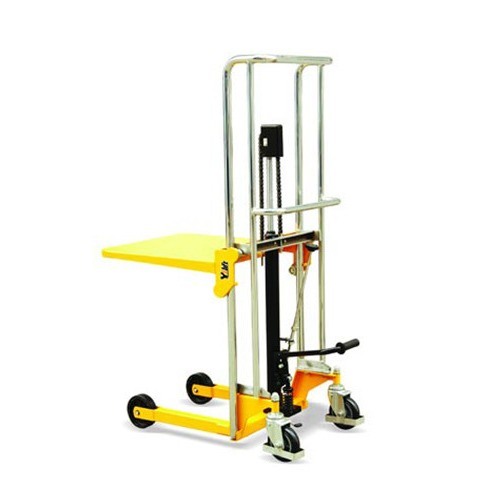

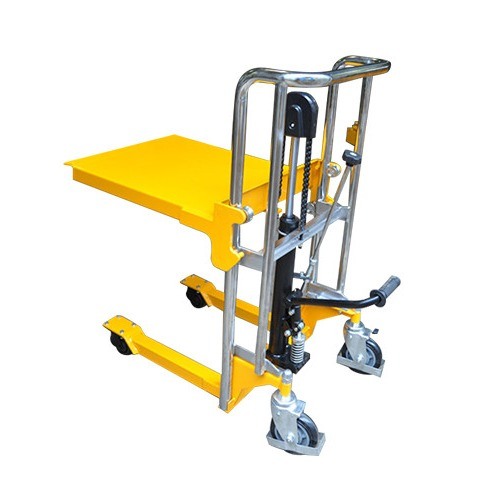

| Product Name: | PS Series Platform Mini Stacker Equipped With A Overload Protection Valve Capacity 400kg | Capacity: | 400kg |
|---|---|---|---|
| Max. Height: | 1725mm | Lifting Height: | 765mm |
| Min.Platform Height: | 85mm | Max. Platform Height: | 1500mm |
| Size Of Fork: | 650X110mm | Max.Width: | 600mm |
| Certification: | CE,ISO9001 | Net Weight: | 75kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Highlight: | EN 1757-1 Mini Stacker,Overload Protection Mini Pallet Stacker,0.4t Mini Pallet Stacker |
||
Feature:
Special design combines lifting, transporting and stacking functions together Robust construction.
· Hard chromium plated frame.
· Effortless Movement.
· Polyurethane rollers with bearing
· No-marking castor as standard. Silent castor is optional.
· Widely used with low platform and various accessories as option.
· Design of double chain and big wheels can be stable and reliable.
· Conforms to EN 1757-1.
Specification:
| Model | PS0485 | PS0412 | PS0415 | |
| Capacity Q | kg | 400 | 400 | 400 |
| Max. height h1 | mm | 955 | 1425 | 1725 |
| Lifting height h3 | mm | 765 | 1115 | 1415 |
| Min.platform height h13 | mm | 85 | 85 | 85 |
| Max.platform height h3+h13 | mm | 850 | 1200 | 1500 |
| Max.Width | mm | 600 | 600 | 600 |
| Platform length | mm | 650 | 650 | 650 |
| Platform width | mm | 576 | 576 | 576 |
| Size of fork e*s | mm | 650x110 | 650x110 | 650x110 |
| Steering roller | mm | Φ127x40 | Φ127x40 | Φ127x40 |
| Load roller | mm | Φ75x40 | Φ75x40 | Φ75x40 |
| Weight | kg | 75 | 81 | 91 |
