Place of Origin: | China |
---|---|
Brand Name: | Sinolift |
Certification: | ISO9001/ CE |
Model Number: | ETP200 ETP250 ETP350 ETP400 |
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | Sandard Export Package |
Delivery Time: | 15 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Set/Month |

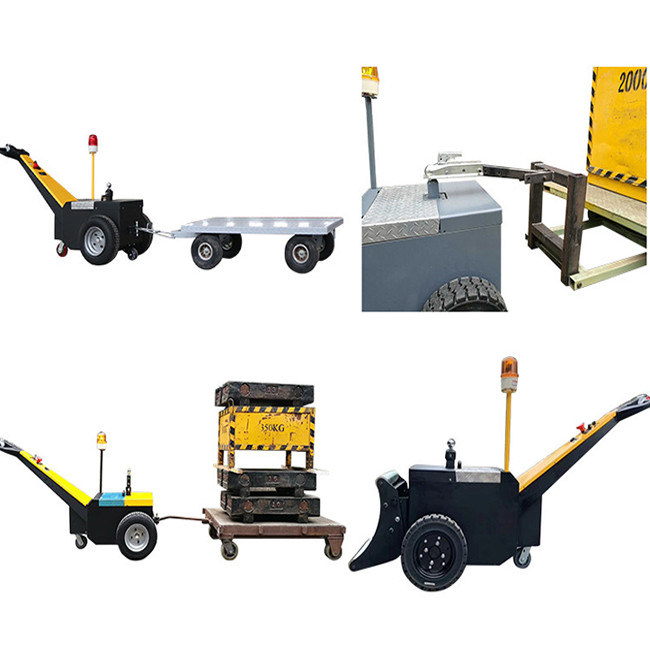

Product Name: | ETP200 ETP250 ETP350 ETP400 Walkie Electric Tugger Electric Tow Tugger Capacity 2000kg-4000kg | Type: | Electric Tow Tugger |
---|---|---|---|
Rated Loading Capacity: | 2000-4000kg | Condition: | New |
Power Souce: | DC Motor | Color: | Red,Green,Blue,White Etc |
Power: | 1.5KW | Weight: | 275-345kg |
Loading Capacity: | 2000-4000kg | Lift Drive / Actuation: | Electric Motor |
Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support,Free Spare Parts |
High Light: | Tugger Industrial Material Handling Equipment,4000kg Walkie Tugger,Stepless speed Walkie Tugger |
Feature:
1.Large capacity maintenance free battery is adopted.
2.Stepless speed regulating acceleration system.
3.It has the function of emergency braking.
4.It is suitable for indoor and outdoor flat pavement.
5.The maximum design gradient is 5%.
6.It has low voltage protection function.
7.There is fault display lamp, which is convenient for diagnosis and maintenance.
8.Built in charger for charging at any time.
9.High torque electromagnetic brake is used for service brake and parking brake.
Specification:
Model | ETP200 | ETP250 | ETP350 | ETP400 | |
Drive unit | Battery | Battery | Battery | Battery | |
Operator type | Pedestrian | Pedestrian | Pedestrian | Pedestrian | |
Rated capacity | kg | 2000 | 2500 | 3500 | 4000 |
Rated drawbar pull | N | 480 | 720 | 800 | 800 |
Wheelbase | mm | 630 | 630 | 680 | 680 |
Service weight(include battery) | kg | 275 | 295 | 336 | 345 |
Tyre type | Rubber/PU | Rubber/PU | Rubber/PU | Rubber/PU | |
Tyre size, driving wheels | mm | 2XΦ406x150 | 2XΦ406x150 | 2XΦ375x115 | 2XΦ375x115 |
Tyre size, loading wheels | mm | Φ125x50 | Φ150x50 | Φ150x50 | Φ150x50 |
Tyre quantity, driving/loding wheel | 2/2 | 2/2 | 2/2 | 2/2 | |
Overall Height | mm | 1100 | 1100 | 1230 | 1230 |
Overall length | mm | 1705 | 1735 | 1915 | 1915 |
Overall width | mm | 760 | 760 | 805 | 805 |
Travel speed, laden/unladen | km/h | 4/5 | 4/5 | 2.5/3.5 | 2.5/3.5 |
Gradeability, laden/unladen | % | 5/10 | 5/10 | 5/10 | 5/10 |
Braking type | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | |
Charger | V/A | 24/10 | 24/15 | 24/15 | 24/50 |
Rated power of driving motor S2 60 minutes | Kw | 0.8 | 1.2 | 1.5 | 1.5 |
Battery voltage/nominal capacity K20 | V/Ah | 2X12/70 | 2X12/100 | 2X12/120 | 24/200 Lithium battery |
Type of drive unit | DC | DC | DC | DC | |
Steering type | Mechanical | Mechanical | Mechanical | Mechanical | |
Sound pressure level at the driver's ear | dB(A) | <70 | <70 | <70 | <70 |
