CDD15C Counter Balanced Forklift Capacity 1500kg 3300 LBS

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: CDD
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 sets/mouth
Product Name: CDD15C Counter Balanced Forklift Capacity 1500kg 3300 LBS LOAD CAPACITY: 1500KG
LIFTING HEIGHT: 2500MM Load Center Distance: 600mm
Wheelbase: 1300mm Max.Lift Speed Unladen: 120mm/s
Max.Lift Speed Laden: 105mm/s Lift Motor (DC): 2.2kw
Drive Motor (DC): 1.2kw Battery Voltage: 24v
Warranty: 1 Year After Service: On-line Service,free Spart Parts

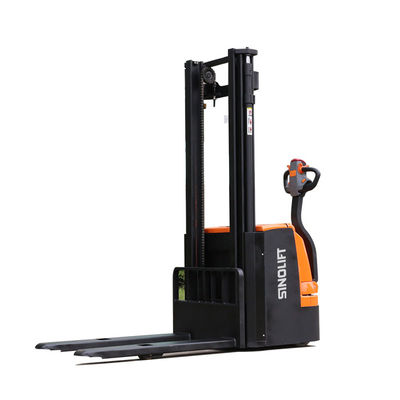

CDD15C Full Electric Walkie Stacker
LOAD CAPACITY: 1500KG
LIFTING HEIGHT: 2500MM,3000MM, 3500MM, 4000MM

▲ Vertical AC drive system, precise control, maintenance-free, safe and reliable.
▲ ZAPI Controller, Timer, Power meter, Easy to operate and maintain.
▲ Reliable Quality of the United States AMP Waterproof Plug-ins and electrical parts, All Wires, Cables have Reliable Protection, Fixed, Greatly Reducing Electrical Failure.



Model. CDD15C
Load capacity/rated load kg   1500
Load center distance mm C 600
Overall length mm L1 1940
Overall width mm b1 800
Overall height mm h1 2065
Wheelbase mm Y 1300
Height (handle) mm h2/h3 850/1250
Fork height, lowered mm h4 85
Max.lift height mm h5 2500/3000/3500/4000
Min.Ground clearance mm h6 30
Forks outside width mm b2 550/685
Forks inside width mm b3 230/365
Fork length mm h7 1150
Fork width mm e 160
Front tread mm b4 525
Max.Lift speed unladen mm/s   120
Max.Lift speed laden mm/s   105
Max.travel speed unladen km/h   5
Max.travel speed laden km/h   4.5
Min.ouside turning radius mm Wa 1470
Grade ability, laden %   5
Grade ability, unladen %   8
Weight (unladen) kg   955
Battery capacity Ah   210
Battery voltage V   24
Lift motor (DC) kw   2.2
Drive motor (DC) kw   1.2
Aisle width of Crossways, 1000*1200 Pallet mm   2405
Aisle width of Crossways, 800*1200 Pallet mm   2340
