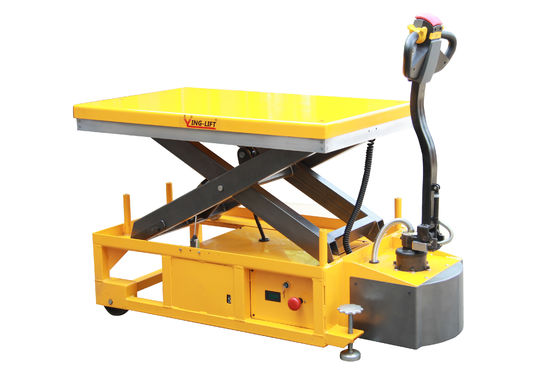

YLF120 Mobile electric hydrauli scissor lift table Loading Capacity 1200kg Max Height 1300mm

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: YLF120
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 sets/month
Product Name: YLF120 Mobile Electric Hydrauli Scissor Lift Table Loading Capacity 1200kg Max Height 1300mm Drive Type: Electric
Driving Type: Walkie Turning Radius: 1500mm
Rated Capacity: 1200Kg Max.height: 1300mm
Braking Type: Electromagnetic Braking Driving Motor Power: 1.1KW
Lifting Motor Power: 2.2KW Battery: 24V/120Ah
Net Weight: 426Kg Warranty: 1 Year

Feature:



1. Man machine integrated multi-functional control handle, stepless speed regulator, integrated hydraulic pump station, stable and powerful lifting of goods, high-power walking drive;

2. Equipped with large capacity maintenance free Volta battery

3. Anti pinch shear fork design, self-lubricating design is adopted at the pivot position to prolong the service life

4. Aluminum alloy safety bar is set under the table, and it will stop falling immediately when it encounters obstacles to ensure safety

5. Heavy duty oil cylinder is equipped with explosion-proof valve, which can prevent the lifting platform from falling down quickly when the oil pipe bursts

6. Equipped with safety wedge block, convenient for maintenance.



Specification:



Model   YLF120
Drive type   Electric
Driving type   walkie
Rated capacity kg 1200
Turning radius mm 1500
Material of wheels   polyurethane
Braking type   Electromagnetic braking
Driving motor power kw 1.2
Lifting motor power kw 2.2
Battery V/Ah 24/120
Dimension mm 1300*820
Min.height mm 540
Max.height mm 1300
Net weight kg 426
