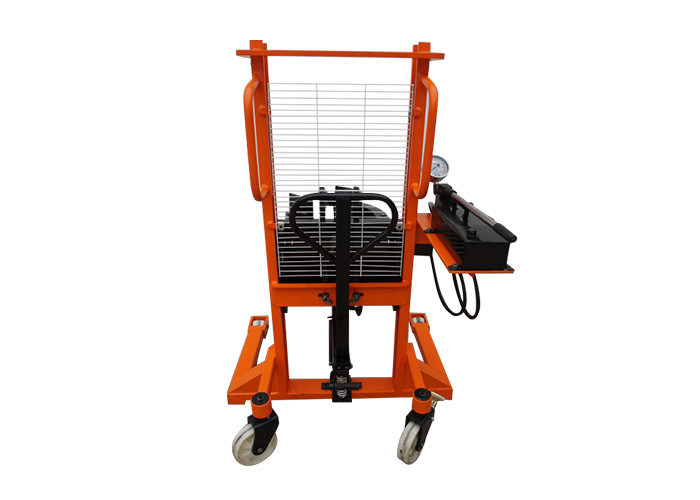

CTY Transverse Clamp Gripper Handling Trolley With Dual Pump for Easy Lifting Load Capacity 400kg

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: CTY
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Product Name: CTY Transverse Clamp Gripper Handling Trolley With Dual Pump For Easy Lifting Load Capacity 400kg Load Capacity: 400kg
Max.Height: 1600mm Clamp Width: 700-790mm
Min.Clamp Height: 300mm Clamp Length: 820mm
Load Center: 700mm Net Weight: 300kg
Over Size: 1500X1060X1400mm Forward And Back: 1500mm
Paper Roll Diamete: Ø300-1000mm Warranty: 1 Year
High Light:

EN1757-1:2001 Handling Trolley

,

Transverse Clamp Gripper Handling Trolley

,

Controllable direction handle roller trolley

Feature:



1.Controllable direction handle.

2.Has a dual pump for easier lifting.

3.Unique technology quick valve built in.

4.Top quality hydraulic pump & cylinder.

5.Protection device for steering wheel & safety guard for load roller.

6.Conforms to EN1757-1:2001.



Specification:



Model   CTY0210-500 FTD0416-500 CTY0216-500 FTD0416-1000
Capacity kg 200 400 200 400
Liftmax.height mm 1000 1600 1600 1600
Clamp width mm 700-790 635-950 635-950 1135-1450
Min.clamp height mm 300 490 490 520
Clamplength mm 820 820 820 1220
Paper roll diamete mm Ø300-390mm Ø200-500mm Ø200-500mm Ø300-1000mm
Load center mm 200 350 350 700
Weight kg 300 366 348 395
Over size mm 1500*1060*1400 1500*950*2000 1500*950*2000 1900*1450*2000
Channel request mm 1600 1600 1600 2000
Forward and Back mm 1100 1000 1000 1500
Real wheels mm 2*Ø180*50
Front wheels mm 2*Ø80*70
