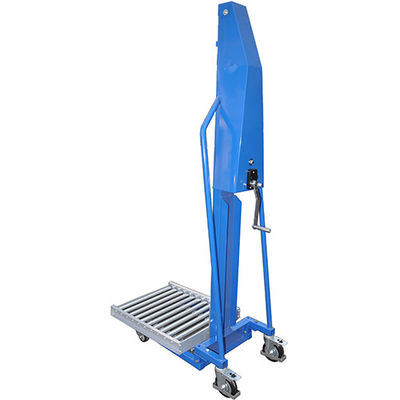

M200 The Tiger Manual Work Positioner Capacity 200 kg

Basic Information
Place of Origin: China
Brand Name: SINOLIFT
Certification: CE
Model Number: M200
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Product Name: M200 The Tiger Manual Work Positioner Capacity 200 Kg Rated Capacity: 200kg
Load Center: 230mm Max. Platform Height: 1500mm
Min. Platform Height: 130mm Min. Fork Height: 30-80mm
Platform Size: 470X600mm Overall Dimensions: 870X600X1920mm
Net Weight: 62kg Certification: CE,ISO9001
Warranty: 1 Year After Service: On-line Service,Spare Parts
High Light:

200kg Manual Work Positioner Lift

,

200kg Work Positioner Lift

,

1500mm manual handling lifting devices

Feature:



1.The Tiger Manual Work Positioner range has been designed, developed and built to give long service with minimum maintenance required and assist with all manner of manual handling within industry and commerce. A sound long term investment!

2.Our manually operated work positioner is ideal for those lightweight lifting requirements where personnel need protection from lifting everyday items which are judged to be too heavy to lift manually. Reams of paper, servers, batteries etc... Deemed too heavy for a person to lift!

3.The unit is mounted on 4 swivel castors allowing it to turn easily in confined areas.

4.Lift is by means of a hand operated “self sustaining” winch allows the operator to winch the load to a given height and just release the handle.

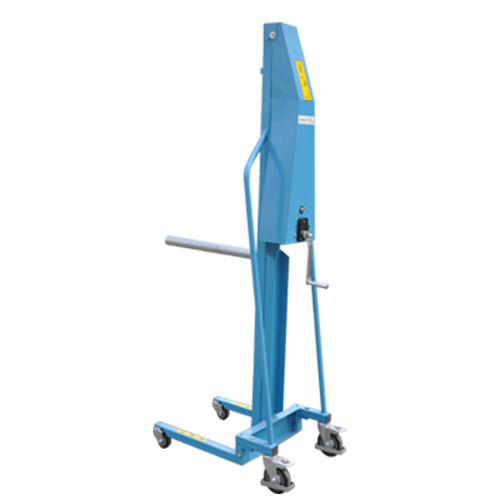

A platform plate is supplied as standard however various attachments are available for pack line applications - e.g.: single boom, twin boom, V block and reel rotator.



Specification:



Model   M200
Capacity (kg) 200
Load Center (mm) 230
Max. Platform Height (mm) 1500
Min. Platform Height (mm) 130 (PE) / 85 Steel
Min. Fork Height (mm) 30~80
Support Leg Height (mm) 110
Platform Size (mm) 470×600 (PE or Steel)
Overall Dimensions (mm) 870×600×1920
Load Wheel (mm) ø75 Universal
Steeing Wheel (mm) ø125 (PU)
Net Weight (kg) 62
