LGA-10 LGA-15 LGA-20 LG-25 Stowed Height 199cm Aluminum Material Lift

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: LGA
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 500 sets/mouth
Product Name: LGA-10 LGA-15 LGA-20 LG-25 Stowed Height 199cm Aluminum Material Lift Rated Capacity: 200-350kg
Length Operating: 1460mm-2040mm Length-Stowed: 740-790mm
Width Standard Base: 800mm Height-Stowed: 1990mm
Material: Special Steel Color: Red,Green,Blue,White Etc
Net Weight: 117.9kg-204.1kg Warranty: 1 Year
After Service: On-line Service,free Spart Parts
High Light:

Stowed Height 199cm Material Lift

,

771lbs Material Lift

,

199cm Aluminum Material Lift

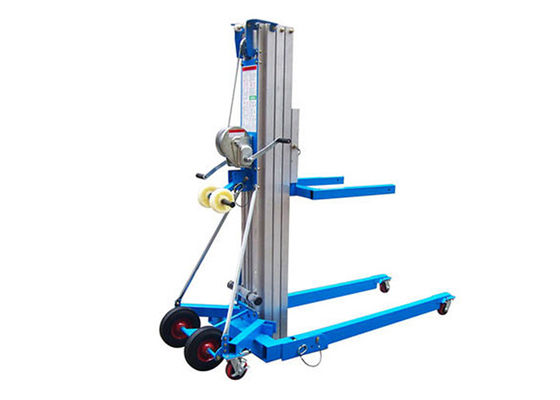

LGA Aluminum Material Lifts Easy operation



1. Lowering easily,To make you lift quickly and convenient, the LGA super material lift can be operated by one person for lifting and moving the goods.

2. Multiple optional parts such Lighthouse device,LGA series material lift can be equipped with multiple fork, such as the lighthouse device can be used for emergency lighting and other uses.

3. The stowed height of the LGA series materials lift is lower than 2m, it is easily to pass cross the standard doorway, the Roller equipped on the back makes the transportation more convenient.



Model LGA-10 LGA-15 LGA-20 LGA-25
Standard Forks 9 ft 9 in 14ft 7 1/2in 19ft 6in 24ft 4 in
3m 4.5m 6m 7.4m
Length Operating 57 1/2in 72 1/2in 80 1/2in 80 1/2in
146cm 184cm 204cm 204cm
Load Capacity/at 18" load center 771lbs 660lbs 550lbs 440lbs
350kg 300kg 250kg 200kg
Length-Stowed 29in 29in 29in 31in
74cm 74cm 74cm 79cm
Width Standard Base 31 1/2in 31 1/2in 31 1/2in 31 1/2in
80cm 80cm 80cm 80cm
Height-Stowed 78 1/2in 78 1/2in 78 1/2in 78 1/2in
199cm 199cm 199cm 199cm
Net Weight-Standard Base 260lbs 317lbs 450lbs 450lbs
117.9kg 143.8kg 183.7kg 204.1kg
